Description
TEAM ASSOCIATED SR10M DIRT OVAL TEAM KIT
Street Stock Dirt Oval Racing. All the dirt, clay and pavement-racing excitement in a 1:10 scale RC car! Often overlooked in the mainstream, dirt track racing is one of the most exciting forms of tyre-scorching car racing action. Competitions are held on oval tracks with a surface of dirt or clay. With locations available throughout the United States, it’s easy to see why everyone enjoys gathering to these year-round weekly experiences.
The SR10M Dirt Oval Race Car features 24 precision ball bearings, fully adjustable suspension, vertical ball ends for roll center adjustments, 2.6:1 ratio gearbox with heavy-duty sealed gear differential, and externally adjustable V2 slipper clutch. The new Octalock spur gear and 11mm Octalock pads are used for maximum consistency and higher torque capacity. Look for a dirt track racing event near you. All are welcome to race, run for fun, or just enjoy the action. The time for tearing up the oval track is now!
Features
- Updated mid-motor rear carbon fiber shock tower for oval
- New carbon fiber chassis side braces
- Updated rear toe block for dirt oval racing
- Rear CVA drive shafts for more reliability
- Durable and lightweight aluminum top shaft
- Rugged steel turnbuckles for adjustable camber and front toe-in
- New mid-motor low center-of-gravity G10 fiberglass chassis with updated O-Ring battery straps that accommodate 2S LiPo “shorty” battery packs
- 2.6:1 ratio gearbox with heavy-duty sealed gear differential and externally adjustable slipper clutch
- Adjustable suspension geometry
- Vertical ball ends for roll center adjustments, front and rear
- Metric hardware throughout
- 24 precision rubber-sealed ball bearings
- Impact-absorbing front and rear bumpers
- Fully adjustable front and rear body mounts
- Many Factory Team options already available!
Specifications
Power Source: Electric
Terrain: Off-Road
Body Style: Oval/Late Model
Scale Size: 1:10 Scale
Assembly Level: Kit*

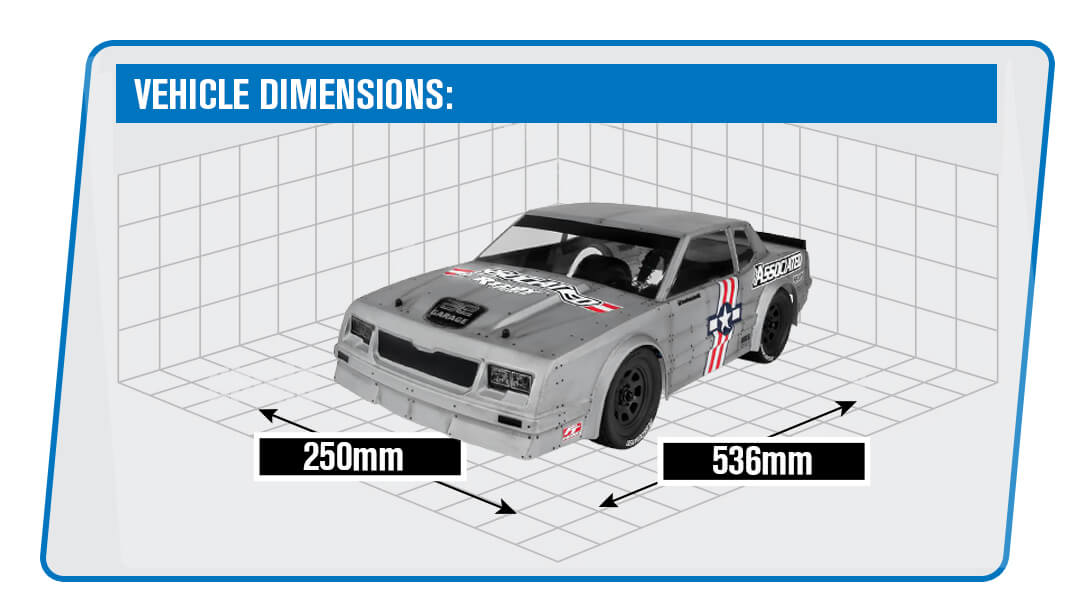

Length: 536.4mm (21.12in)
Width: 250mm (9.84in)
Wheelbase: 277.8mm (10.94in)
Weight: 1424g (3.14lbs)
Internal Gear Ratio: 2.6:1
Drive: 2WD
* This vehicle comes as a kit and must be fully assembled by the user. Electronics and an engine/motor are required.
Required To Complete
- 1:10 scale 540-size electric RC car motor
- 1:10 scale radio control electronic speed control
- Pinion gear
- 7.4V-7.6V 2S LiPo with shorty battery dimensions (standard or low-profile height)
- Battery charger (for the batteries mentioned above)
- 2-channel surface transmitter
- 2-channel receiver
- Steering servo
- Lexan(R) specific spray paint for body
- 1:10 scale wheels and tires
- 4 x AA batteries for radio-controlled car radio
