Description

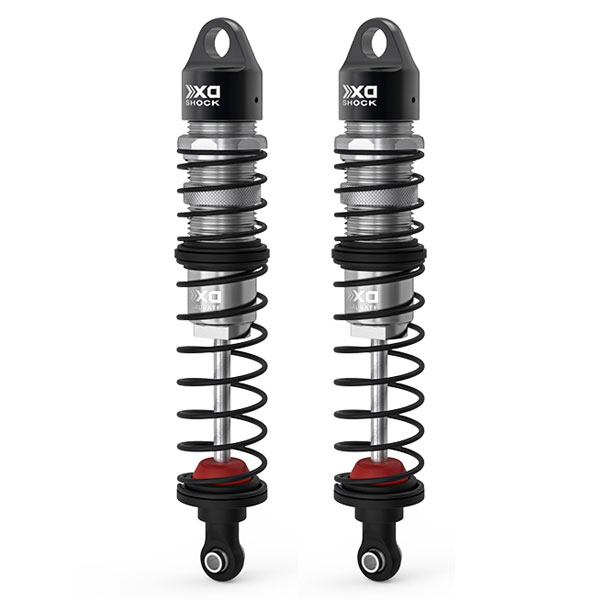

GMADE XD DUAL RATE DIAPHRAGM SHOCK 103MM (2)
Fits 1/8 & 1/10 scale crawlers & trucks, 1/10 scale EP buggys and Short course trucks (such as Gmade R1 and GOM, Axial wraith and bomber, Traxxas E-maxx and 2WD Slash rear).
Gmade XD Dual Rate Diaphtagm Shock Features:
- CNC machined aluminum shock bodies, spring adjust nuts, stop rings, caps and cartridges
- Silver anodized shock bodies, spring adjust nuts, stop rings and cartridges
- Upper and lower shock ends includes silver anodized aluminum balls
- Black anodized shock caps
- Fully threaded for rapid adjustment
- Delrin pistons
- 3.5mm thick shock shafts
- Shaft exits through double O-ring seals
- True dual stage spring rate
- Easy load shock seal assembly
- Laser engraved for authenticity
Spec Check:
- Length (Mounting hole to hole): 103mm
- Shock Body Diameter: 14mm
- Spring Diameter: 19mm
- Spring Length: 20mm and 50mm
- Full Shaft Travel Range: 31mm (without Rubber bump stop)
- Shaft Diameter: 3.5mm
What's Included:
- Silver anodized aluminum shock bodies x 2
- Silver anodized aluminum spring adjust nuts x 2
- Silver anodized aluminum stop rings x 2
- Silver anodized aluminum cartridges x 2
- Black anodized aluminum shock caps x 2
- Shock springs x 4
- All necessary hardware to finish the shocks
- Assembly instructions
- Bottle of shock oil
