Description

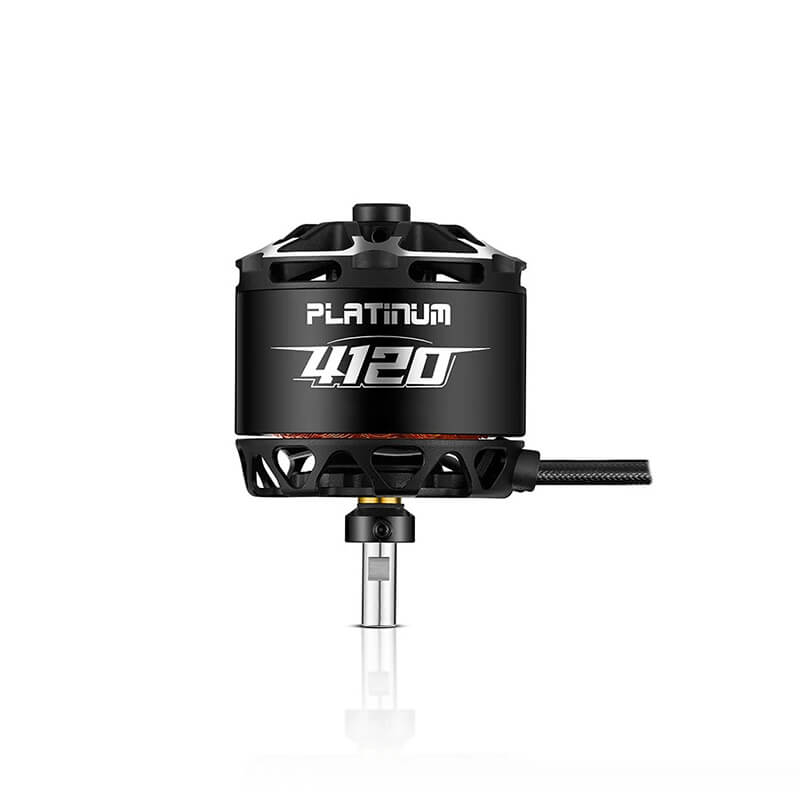

HOBBYWING PLATINUM 4120SL 610KV FIXED WING MOTOR
Specifications
Motor Size: Φ49.5 *72.3mm
Stator Size: Φ40.6*20mm
Stator Process: High standard silicon steel sheet,180? high temperature resistance paint-coat
Enamelled Wire: 200?
Props Mounting Dimensions: Φ15mm-3*M3
Motor Mounting Dimensions: Φ30mm-4*M4
Slot & Pole: 12N14P
Dynamic Balance: ≤10mg
Bearing: 696ZZ
Motor Axle Diameter: Φ6mm
Isolation Test: 500V AC high voltage resistance test
KV: 610
Battery (LiPo): LiPo-6S
No-load Current: 3.7A/22.2V
Maximum Current (Non-hermetic Ambient Temperature ≤ 25?: 121.9A/59s
Max Power: 2252W/59s
Max Thrust: 7.21kg
Resistance: 12mΩ
Wire Size: Enamelled Wire Output
Wire Length: 90mm
Weight (With Wire): 317g
Recommended ESC: PLATINUM 120A V4, PLATINUM 150A V5
Recommended Propeller: 5S:15X8E,16X8E, 6S:14X6E,15X6E
