HOBBYWING XERUN AXE PLUS R3 & AXE 4274SD 1700KV R3 MOTOR
Experience the ultimate combination of power and precision with the Hobbywing Combo XeRun AXE Plus R3 & AXE 4274SD 1700KV R3 Motor. This set offers unparalleled control and acceleration for RC enthusiasts striving for top-tier performance. With the Xerun AXE Plus R3 ESC, enjoy smooth operation, while the AXE 4274SD 1700KV R3 Motor delivers impressive power. Together, they elevate your RC experience to new heights, ready to tackle any challenge with confidence.
Features XeRun AXE 4274SD 1700KV R3 Motor
- The built-in high-precision magnetic encoder sends precise rotor position signals to the ESC
- Versatile in different scale areas
- Excellent protection against water and dust according to IP67 standard
- Use of high quality building materials
- Optimized for sensitive performance development
Technical Specifications XeRun AXE 4274SD 1700KV R3 Motor
Type: Sensored Brushless FOC
Poles: 4
kV Rating: 1700KV
Cells: 3-6S LiPo
No-Load Current: 4.0A
Outer Diameter: 42.0mm
Length: 74.0mm
Shaft Diameter: 5.0mm
Shaft Length: 18.5mm
Waterproof: Yes
Weight: 405g
Application: 1/8, 1/7, 1/6 Rock Crawler

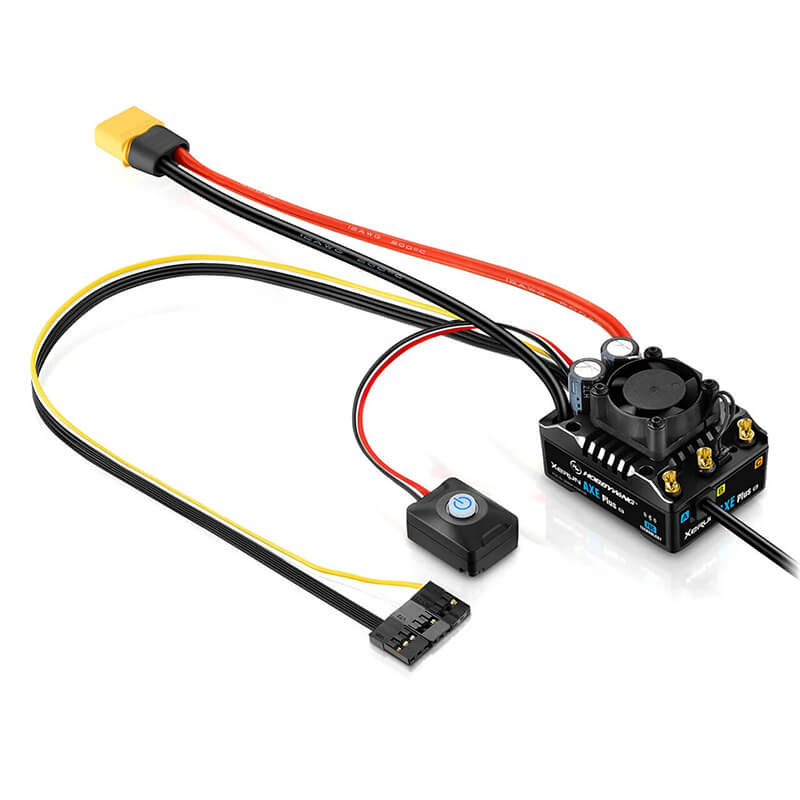

Features XeRun AXE Plus R3
- Stronger performance thanks to FOC (Field-Oriented-Control) technology.
- Drag brake adjustable up to 200% for unparalleled holding power on slopes.
- Super BEC with max. 6A and three voltage levels for using different servos.
- Waterproof and dustproof to IP67 standard.
- Smart torque delivery and speed control for easy control and constant speed under all loads.
- Built-in Bluetooth module.
- Multiple controller protection functions including reverse polarity protection.
- Only compatible with Xerun AX "R2" and "R3" motor series.
Technical Specifications XeRun AXE Plus R3
Type: Brushless Sensored FOC
Current (cont./peak): 135A / 600A
Cells: 2S-6S LiPo
Motor Limits: Only supports Xerun-AXE "R2" and "R3" motor series
AXE R2: 540 / 540L / 550
AXE R3: 4274
BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)
Waterproof: Yes
Cables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
Fan: 25 x 25 x 10mm, powered by BEC
Connectors: XT60
Programming: Per Bluetooth and "HW LINK"-App
Firmware Upgrade: Yes
Dimensions: 49.5 x 37.9 x 32.8mm
Weight: 126.5g
Application: 1/10, 1/8, 1/6 Rock Crawler
