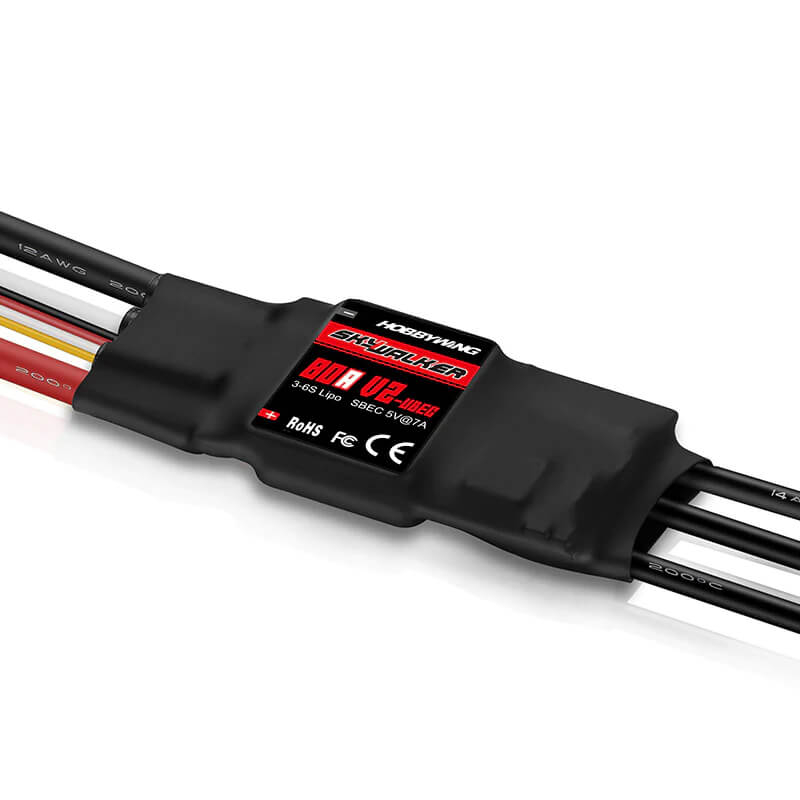

HOBBYWING SKYWALKER 80A V2 SPEED CONTROL
The new SkyWalker V2 features a high-performance 32-bit ARM M0 processor running up to 96MHz, supports maximum speed up to 300,000RPM (2-pole motor).
High quality and reliability make the SKYWALKER V2 series a very cost effective ESC Range.
The Skywalker V2 also features multiple protection modes that include abnormal input voltage, ESC thermal, throttle signal loss (or Fail Safe) and low voltage cutoff.
DEO Technology / Active Freewheeling
The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages. Fast and smooth throttle response, better stability and flexibility during flight. Higher driving efficiency, longer flight times. Lower ESC temperature, more reliable operation.
Search Mode
Search mode can help users find their aircraft by pulsing the motor to beep after the aircraft falls into a visually obstructed environment and is difficult to find. This mode can also be used to prompt the user to disconnect the battery of an ESC that has not been working for a set time to prevent the battery from running out of power and being damaged.
Reverse Brake
With Reverse Brake and Linear Reverse Brakes mode enabled can effectively shorten the landing distance of the aircraft to simulate the landing of a real aircraft. Normal Brake Mode and Brake Disabled mode are also available; the brake amount is adjustable in normal brake mode.
Features
- High Quality & Reliability
- Search Mode
- DEO Technology
- Programmable Parameters
- Multiple Protections
Specifications
Brushed/Brushless: Brushless
Cont./Peak Current: 80A/100A
Input: 3-6S LiPo
BEC Output: Linear mode:5V,7A (Switch-mode)
Input Wires: Red-12AWG-100mm*1, Black-12AWG-100mm*1
Output Wires: Black-14AWG-75mm*3
Input Connectors: 4.0 Gold Connectors (Female)
Output Connectors: No
LED Program Card: Supported
WiFi Module: Not Supported
Size: 85.0 x 36.0 x 9.0mm
Weight: 79g
