Description

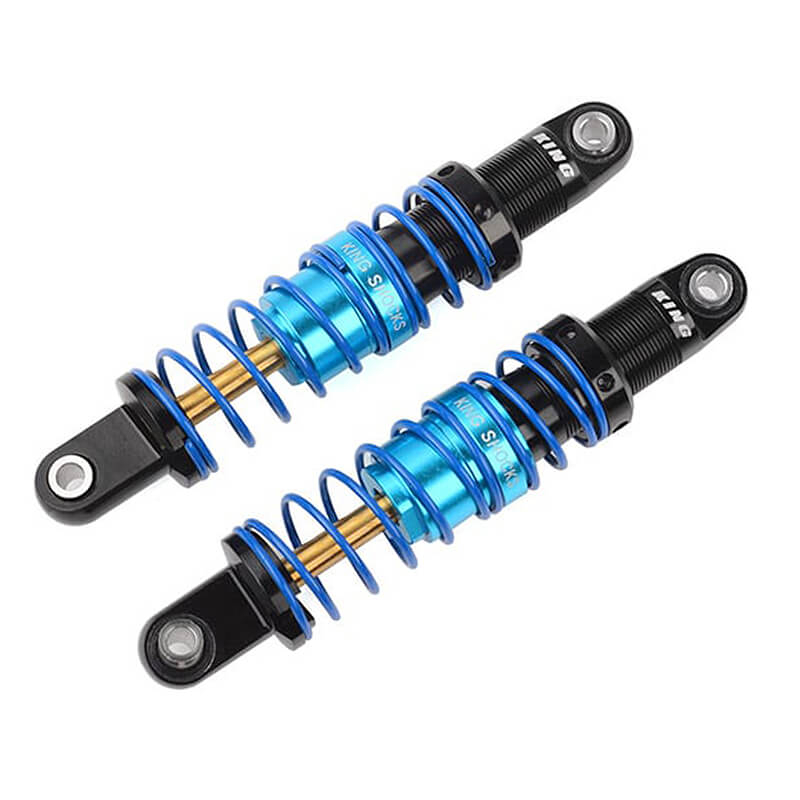

RC4WD KING OFF-ROAD RACING SHOCKS 70MM (PR)
These are officially licensed from King Off-Road Shocks. These new shocks feature a completely new design from the ground up and are built to handle rough and rocky terrains. Bolt up and upgrade your scale build with a new set of these realistic-looking shocks!
Features
- Machined Billet Aluminum
- King Laser Etched on Top Cap and Retainer Ring
- Dual Spring Design
- X-ring Gaskets
- Titanium Nitride Coated Shock Shafts
Specifications
Hole to Hole (Compressed): 2.24in / 57mm
Hole to Hole (Uncompressed): 2.75in /70mm
Overall Length: 3.14in / 80mm
Travel Length: 0.51in / 13.0mm
Shock Body OD: 0.57in / 14.6mm
Shaft OD: 0.15in / 3.9mm
Each Shock Weighs: 0.61oz / 17.5g
What's Included
- 2 x RC4WD King Off-Road Racing Shocks (80mm)
- 2 x White Shaft Guides
- 4 x 3 x 5.5 x 2.7mm Black Spaces
- 2 x 3 x 5.5 x 2mm Black Spaces
- 1 x King Decal Sheet
Fits
- Traxxas TRX-4 Land Rover Defender
- Traxxas TRX-4 '79 Bronco Ranger XLT
- Traxxas TRX-4 Sport Kit
- Traxxas TRX-4 Sport
- Traxxas TRX-4 Crawler Kit
- Traxxas TRX-4 Mercedes-Benz G 500 4x4
- Traxxas TRX-4 Chevrolet K5 Blazer
- Traxxas TRX-6 Mercedes-Benz G 63 6x6
- RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Autobiography Limited Edition) (Z-RTR0043)
- RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Heritage Edition) (Z-RTR0044)
- RC4WD Gelande II RTR Truck w/Cruiser Body Set (Red) (Z-RTR0047)
- RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
- RC4WD Gelande II Truck Kit 1/10 Chassis Kit (Z-K0060)
- RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set (Z-K0064)
Notes
- Designed with Titanium Nitride (TiN) shock shafts for long term wearability.
- X-ring Gaskets provide double the oil seals in the shock cartridge.
- Ball ends are a direct fit for Traxxas TRX-4 axle and shock hoop mounts.
- Shocks do not come with oil. It is highly recommended to build the shocks with silicone shock oil and thick shock grease on the x-rings for maximum performance.
- Additional X-ring spacers are included to fine tune the shocks. A 2.7mm spacer is installed in the shocks providing maximum sealing compression. The 2.5mm spacer can be used allowing the shaft to move easier through the X-rings.
- When installing on Axial SCX10-3 please use a 5mm Black Spacer with M3 Hole (Z-S0821) on the shock tower.
