Description

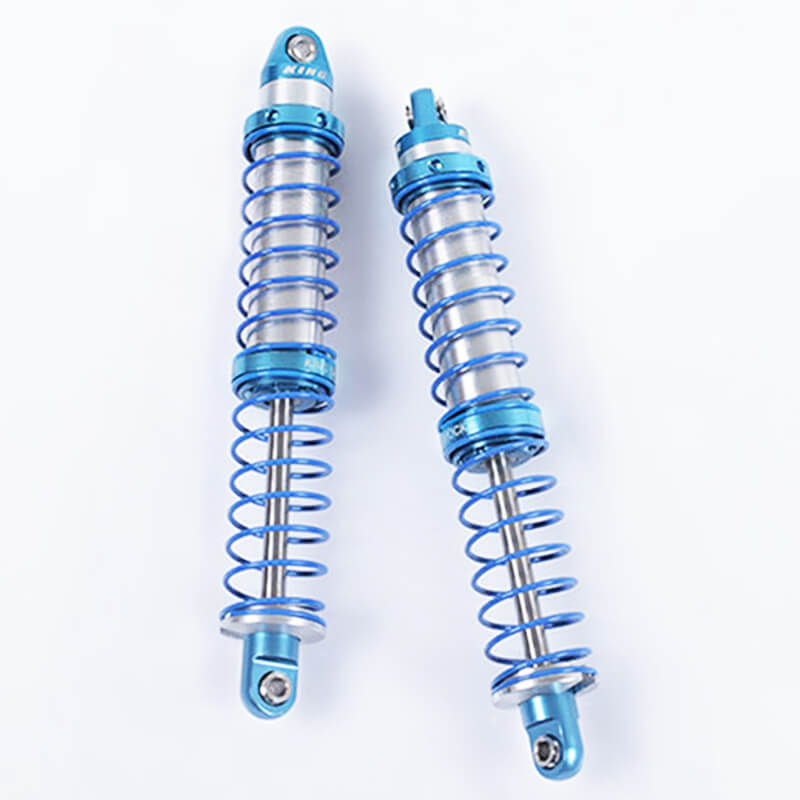

RC4WD KING OFF-ROAD DUAL SPRING SHOCKS (120MM MEDIUM OD)
These are the all new Licensed Dual Spring Shocks to hit the market and are officially Licensed from King Off-Road Shocks. These new shocks feature a completely new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!
Features
- Machined Billet Aluminum
- King on Top and Retainer Ring
- Dual Spring Design
- Steel Rod End Ball
Specifications
Ball Width: 0.25in / 6.3mm
Ball Lip Diameter: 0.19in / 4.8mm
Ball ID: 0.12im / 3mm
Hole to Hole (Compressed): 3.15in / 80mm
Hole to Hole (Uncompressed): 4.72in /120mm
Overall Length: 5.09in / 129.3mm
Travel Length: 1.57in / 40mm
Shock Body OD: 0.49in / 12.6mm
Shaft OD: 0.15in / 3.97mm
Spring Body OD: 0.66in / 16.98mm
Spring Body ID: 0.58in / 14.8mm
Each Weight: 1.05oz / 30g
What's Included
- 2 x RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD)
- 1 x King Decal Sheet
Notes
- Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
