Description

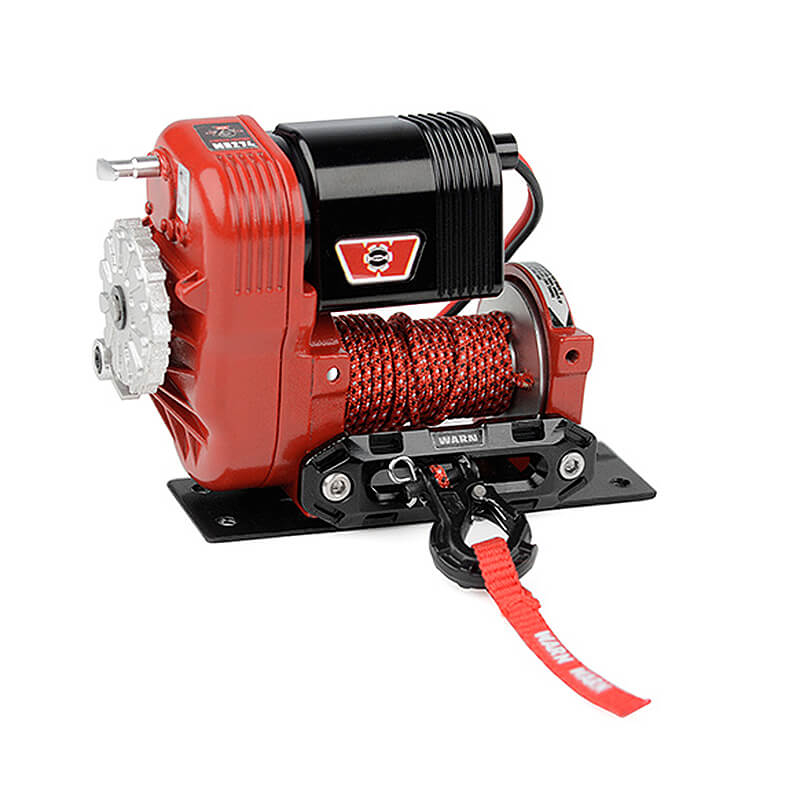

RC4WD 1/10 WARN 8274 WINCH (75TH ANNIVERSARY EDITION)
Introducing our all-new RC4WD 1/10 Warn 8274 Winch (75th Anniversary Edition). This winch brings a realistic, licensed 1/10 version of the custom-configured M8274 Warn Winch! The design is made from quality materials and craftsmanship! This winch is packed full of great features including heavy-duty pulling strength, a free spool, and ultra-realism.
Features
- CNC Machined
- Billet and Cast Aluminum
- Working Spring Loaded Warn Hook
- Synthetic Winch Rope
- Highly Detailed
- Free Spool
- Full Warn Decals Installed
- Rated Voltage: 6V
- Operating Voltage: 6V - 12.4V
- Can operate on 3 Cell Lipo
- 3.28ft / 1.0m Rope Pre-Installed
- Load Limits: Dead Lift 50lbs / 22.6kgs
- Load Limits: Rolling Drag 70lbs / 31.7kgs
- Winch Rope Load Limits: Dead Lift 25lbs / 11.3kgs
- Winch Rope Load Limits: Rolling Drag 37lbs / 16.8kgs
- 30 Day Warranty
Specifications
Length: 2.56in / 65.0mm
Width: 1.06in / 27.0mm
Height: 1.77in / 45.0mm
Weight: 4.23oz / 120g
What's Included
- 1 x RC4WD 1/10 Warn 8274 Winch (75th Anniversary Edition)
- 4 x M2.5 x 4mm SHCS (Black)
- 4 x M2.5 x 6mm SHCS (Black) (Z-S0855)
- 1 x RC4WD Warn Winch Pull Tags (Z-S1660)
- 1 x Warn Decal Sheet Set
Fits
- RC4WD Universal Winch Mounting Plates (Z-S1609). This allows for you to get the winch mounted in just the right spot to prevent it from hitting other items on your build.
- RC4WD Marlin Crawler Front Plastic Tube Bumper for Trail Finder 2 (Z-S0594)
- RC4WD Jeep JK Rampage Recovery Bumper to fit Axial SCX10 Chassis (Z-S0434)
- Tough Armor Winch Bumper with Grill Guard for Axial Jeep Rubicon (Z-S1193)
- RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496) (Remove the fairlead)
- RC4WD Trail Finder 3 RTR W/ Mojave II Hard Body Set (Z-RTR0045)
Notes
- The side gear lock is only for looks and is not to be used for the operation of the winch. Be sure that its not in contact with the gear or it can cause damage to your winch.
- This winch is very powerful. The winch line will break before you are able to max out the winches capacity.
- Warn and the Warn name are registered trademarks of Warn Industries. The Warn logo is property of Warn Industries.
