Description
RC4WD GELANDE II KIT W/ 2015 LAND ROVER DEFENDER D90 HARD BODY SET
Experience the versatility and advanced design of the G2 for yourself. Packed full of capability, the G2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.
The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the Yota II Axles.
The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.
The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!
Are you ready for your off-road experience?
Features
- Custom Designed for True to Scale Looks
- Realistic Aluminum Ladder Frame Chassis
- R3 Single Speed Transmission
- Center Mounted Realistic 4x4 Transfer Case
- Yota II Ultimate Scale Cast Axles
- 3 Link Front and 4 Link Rear Suspension
- 1.9" Stamped Steel Beadlocks W/Lug Nuts
- Super Grip Dirt Grabber Tires
- Chassis Mounted Steering servo
- Plastic Fuel Cell Receiver Box
- Dual Spring Oil Filled Shock Absorbers
Specifications
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide 0.8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears
R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1 Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Cast Yota II Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm
G2 Suspension
Double Triangulated 4 Link Rear Suspension
3 Link Suspension with Panhard Bar
Shock Absorbers
Dual Spring 80mm Shocks: Can be Oil Filled
Wheels
Type: 1.9'' 5 Lug Wagon Wheels
Hub: Pin Type
Width: 25mm
Back Spacing: 11mm
Bumpers
Machined Billet Aluminum, Lightweight

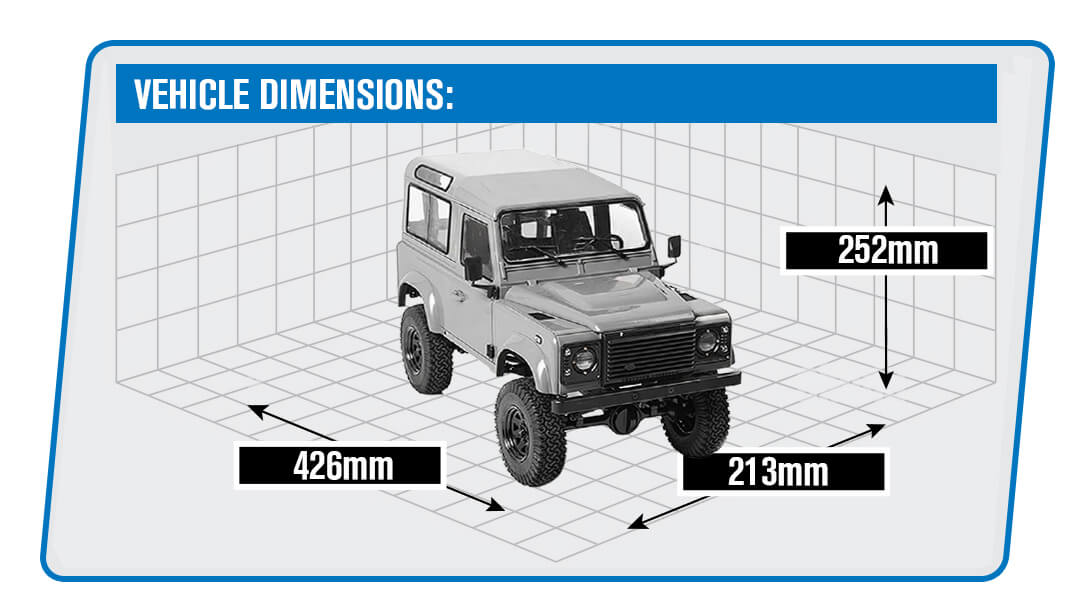

G2 Truck Dimensions
Wheelbase: 275mm (10.8")
Width: 213mm (8.3")
Height: 252mm (9.9")
Ground Clearance: 58mm (2.2")
Final Drive Ratio: 31.9:1
Weight: 5.58Lbs / 2.533Kg
What's Included
- 1x RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set
Please Note: This is a kit that requires building time (appro. 2-3 hours) and electronics.
Required To Complete
Truck Kit
- Hex Drivers (1.5mm, 2mm, 2.5mm)
- Long Nose Pliers
- Blue Thread Lock
- Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Body Kit
- Modeling / Craft Knife
- Long Nose Pliers
- Side Cutters
- Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy
- Hex Drivers (1.5mm, 2mm)
- Cross Phillips Screwdriver (Small)
Electronics
- Motor (35t, 45t or 55t)
- Outcry III Waterproof ESC (Z-E0113), or Outcry Extreme Speed Controller ESC w/ Program Card (Z-E0118)
- Radio and Receiver (2 channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
- Twister High Torque Metal Gear Digital Servo (Z-E0035)
- Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery
- Charger (Consult your battery guide) Chargers
Notes
- While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock when putting metal screws into metal parts.
- Steps marked with an asterisk (*) require thread lock.
- Use thread lock sparingly.
- Do not over tighten screws otherwise you may strip the thread.
- Requires 5mm Black Spacer with M3 Hole (Z-S0821) to install Hull Front Bumper W/ Steering Guard for Gelande II (D90/D110) (VVV-C0707) and Hull Front Bumper W/ Steering Guard and IPF Lights for Gelande II (D90/D110) (VVV-C0708).
- Be sure to shim your axles if needed
