RC4WD GELANDE II RTR TRUCK W/CRUISER BODY SET (RED)
Experience the versatility and advanced design of the G2 for yourself. Packed full of capability, the G2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.
The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the all new Yota II axles.
The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.
The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!
Are you ready for your off-road experience?
Features
- Custom Designed for True to Scale Looks
- Realistic Aluminum Ladder Frame Chassis
- R3 Single Speed Transmission
- Center Mounted Realistic 4X4 Transfer Case
- Yota II Ultimate Scale Cast Axles
- 3 Link Front and 4 Link Rear Suspension
- OEM Stamped Steel 1.9" Beadlock Wheels (White)
- Tomahawk 1.9" Scale Tires
- Chassis Mounted Steering Servo
- Plastic Fuel Cell Receiver Box
- Dual Spring Oil Filled Shock Absorbers
Specifications
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears, 8 Bearings, Cast Casing
R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratios: 1.78:1
Gears - Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex: (Using 4mm TF2 Hexes): 178.2mm
G2 Suspension
3 Link Suspension with Panhard Bar
Double Triangulated 4 Link Rear Suspension
Shock Absorbers
Dual Spring 80mm Shocks - Can be oil filled
Wheels
Type: OEM Stamped Steel 1.9" Beadlock Wheels
Hub: 12mm Hex
Width: 24.3mm( 0.96")
OD: 48.3mm(1.9")
Bumpers
Machined Billet Aluminum, Lightweight

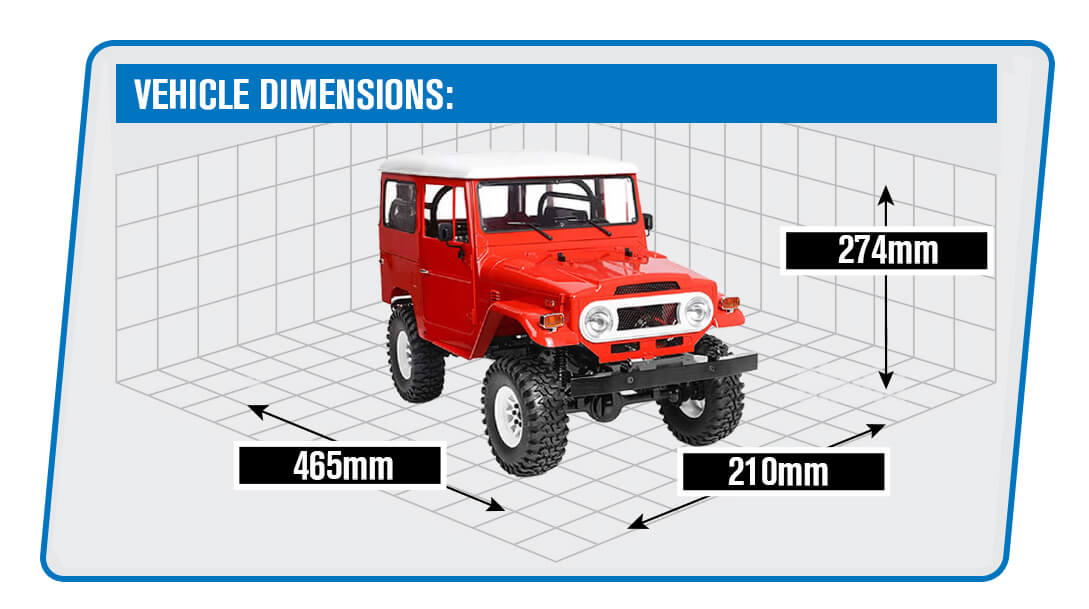

G2 Truck Dimensions
Wheelbase: 10.8in / 275mm
Length: 18.3in / 465mm
Width: 8.2in / 210mm
Height: 10.7in / 274mm
Ground Clearance: 2.4in / 61mm
Final Drive Ratio: 31.9:1
Weight: 8.35Lbs / 3.79Kg
What's Included
- 1 x RC4WD Gelande II RTR Truck w/Cruiser Body Set (Red)
Notes
- While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock when putting metal screws into metal parts.
- Steps marked with an asterisk (*) require thread lock.
- Use thread lock sparingly.
- Do not over tighten screws otherwise you may strip the thread.
